>xabsl The Extensible Agent Behavior Specification Language

XabslEngine Class Library Reference

xabsl::State Class Reference

#include <XabslState.h>

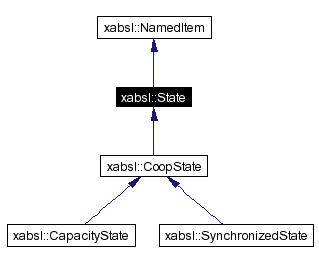

Inheritance diagram for xabsl::State:

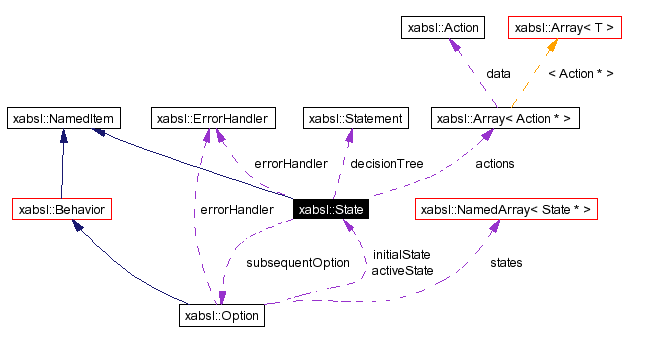

[legend]Collaboration diagram for xabsl::State:

[legend]List of all members.

Detailed Description

Represents a single state written in.

Author:: Martin Loetzsch

Definition at line 32 of file XabslState.h.


Public Member Functions
	State (const char *name, ErrorHandler &errorHandler, const unsigned &time, int optionIndex, int index)
	Constructor.
	~State ()
	Destructor.
void	create (InputSource &input, NamedArray< Option * > &options, NamedArray< BasicBehavior * > &basicBehaviors, NamedArray< State * > &states, Symbols &symbols)
	Creates the state and it's subelements from the intermediate code.
virtual State *	getNextState ()
	Executes the decision tree and determines the next active state (can be the same).
void	reset ()
	Sets the time when the state was activated to 0.
bool	isTargetState () const
	Returns wheter the state is a target state.
virtual bool	coopCheck ()
	Check whether this state can be entered, or whether entering is blocked due to cooperating agents.
virtual bool	getConflict ()
	Whether this state is currently conflicted, i.e whether cooperation conditions are violated.
Public Attributes
Array< Action * >	actions
	The actions of the state.
Option *	subsequentOption
	The first subsequent option that is executed after that option if the state is active.
unsigned	timeOfStateExecution
	The time how long the state is already active.
int	index
	Index of the state in array states in corresponding option.
unsigned	timeWhenStateWasActivated
	The time, when the state was activated.
int	optionIndex
	Index of the corresponding option this state belongs to.
Protected Attributes
bool	targetState
	If true, the state is a target state.
ErrorHandler &	errorHandler
	Used for error handling.
Statement *	decisionTree
	The root element of the decision tree.
const unsigned &	time
	The system time in ms.

Constructor & Destructor Documentation

xabsl::State::State	(	const char *	name,
		ErrorHandler &	errorHandler,
		const unsigned &	time,
		int	optionIndex,
		int	index
	)

Constructor.

Does not create the state.

Parameters:

name	The name of the state. For debugging purposes.
errorHandler	A reference to a ErrorHandler instance
time	The system time in ms.
optionIndex	Index of the corresponding option this state belongs to
index	Index of the state in array states in corresponding option

Definition at line 20 of file XabslState.cpp.

xabsl::State::~State

(

)

Destructor.

Definition at line 34 of file XabslState.cpp.

References actions, decisionTree, and xabsl::Array< Action * >::getSize().

Here is the call graph for this function:

Member Function Documentation

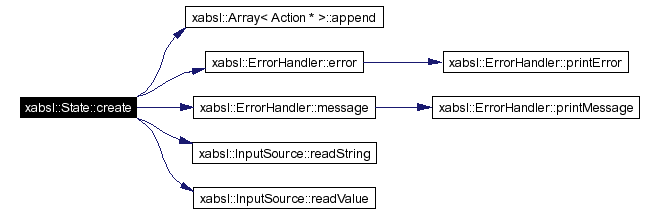

void xabsl::State::create	(	InputSource &	input,
		NamedArray< Option * > &	options,
		NamedArray< BasicBehavior * > &	basicBehaviors,
		NamedArray< State * > &	states,
		Symbols &	symbols
	)

Creates the state and it's subelements from the intermediate code.

Parameters:

input	An input source for the intermediate code. It must be opened and read until A position where a state starts.
options	All available options
basicBehaviors	All available basicBehaviors
states	All states of the option
symbols	All available symbols
