XabslEngine Class Library Reference

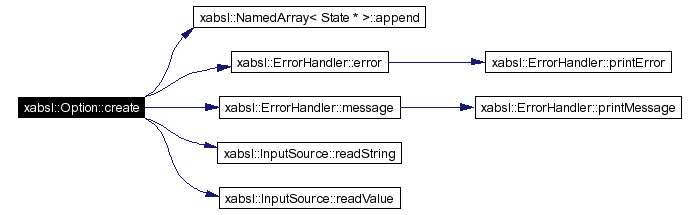

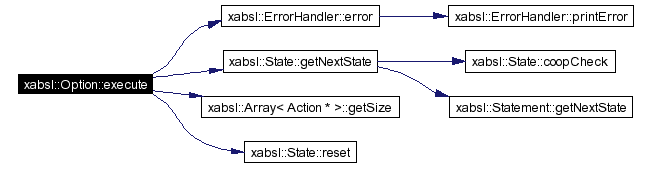

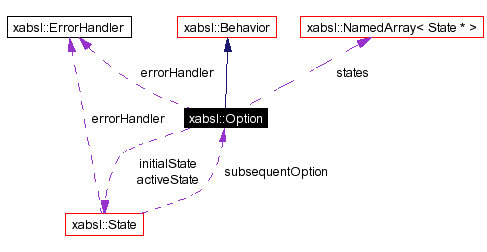

xabsl::Option Class Reference #include <XabslOption.h> Inheritance diagram for xabsl::Option: [legend]Collaboration diagram for xabsl::Option: [legend]List of all members. Detailed Description Represents a single option written in. Author: Martin Loetzsch Max Risler Definition at line 53 of file XabslOption.h. Public Member Functions   Option (const char *name, InputSource &input, ErrorHandler &errorHandler, Symbols &symbols, const unsigned &time, int index)   Constructor.   ~Option ()   Destructor. void  create (InputSource &input, NamedArray< Option * > &options, NamedArray< BasicBehavior * > &basicBehaviors, Symbols &symbols, const int &agentPriority, const int &synchronizationTicks)   Creates the option and it's states from the intermediate code. virtual void  execute ()   Executes the option. bool  getOptionReachedATargetState () const   Returns wheter the option reached a target state. Public Attributes NamedArray< State * >  states   The states of the option. State *  activeState   A pointer to the active state. int  index   Index of the option in array options in corresponding engine. Private Attributes State *  initialState   A pointer to the initial state. ErrorHandler &  errorHandler   Used for error handling. const unsigned &  time   The system time in ms. Constructor & Destructor Documentation xabsl::Option::Option (  const char *  name, InputSource &  input, ErrorHandler &  errorHandler, Symbols &  symbols, const unsigned &  time, int  index )    Constructor. Does not create the option. Parameters: name  The name of the option. For debugging purposes. input  An input source for the intermediate code. It must be opened and read until A position where an option starts. errorHandler  A reference to a ErrorHandler instance symbols  All available symbols time  The system time in ms. Index  of the option in array options in corresponding engine Definition at line 71 of file XabslOption.cpp. xabsl::Option::~Option (   )    Destructor. Deletes the states Definition at line 86 of file XabslOption.cpp. References xabsl::Array< NamedArrayElement< State * > * >::getSize(), and states. Here is the call graph for this function: Member Function Documentation void xabsl::Option::create (  InputSource &  input, NamedArray< Option * > &  options, NamedArray< BasicBehavior * > &  basicBehaviors, Symbols &  symbols, const int &  agentPriority, const int &  synchronizationTicks )    Creates the option and it's states from the intermediate code. Parameters: input  An input source for the intermediate code. It must be opened and read until A position where an option starts. options  All other options basicBehaviors  All basic behaviors symbols  All available symbols agentPriority  Priority value of the agent, used for solving conflicts in cooperative state assignment synchronizationTicks  Number of execution cycles that is required for synchonization with other agents, i.e time from sending a message until answer is received Definition at line 94 of file XabslOption.cpp. References activeState, xabsl::NamedArray< State * >::append(), xabsl::ErrorHandler::error(), xabsl::ErrorHandler::errorsOccurred, initialState, xabsl::ErrorHandler::message(), xabsl::InputSource::readString(), xabsl::InputSource::readValue(), states, and XABSL_DEBUG_INIT. Here is the call graph for this function: void xabsl::Option::execute (   )  [virtual]   Executes the option. The state machine is carried out to determine the subsequent option or the subsequent basic behavior. Output symbols are set. Implements xabsl::Behavior. Definition at line 151 of file XabslOption.cpp. References xabsl::State::actions, activeState, xabsl::ErrorHandler::error(), xabsl::State::getNextState(), xabsl::Array< Action * >::getSize(), initialState, and xabsl::State::reset(). Here is the call graph for this function: bool xabsl::Option::getOptionReachedATargetState (   )  const   Returns wheter the option reached a target state. Definition at line 177 of file XabslOption.cpp. References activeState, and xabsl::State::isTargetState(). Referenced by xabsl::SubsequentOptionReachedTargetStateCondition::getValue(). Here is the call graph for this function: Member Data Documentation NamedArray<State*> xabsl::Option::states   The states of the option. Definition at line 99 of file XabslOption.h. Referenced by xabsl::Engine::addActions(), xabsl::Engine::checkForLoops(), xabsl::Engine::countActions(), create(), xabsl::TransitionToState::TransitionToState(), and ~Option(). State* xabsl::Option::activeState   A pointer to the active state. If 0, then no state is active Definition at line 102 of file XabslOption.h. Referenced by create(), execute(), and getOptionReachedATargetState(). int xabsl::Option::index   Index of the option in array options in corresponding engine. Definition at line 108 of file XabslOption.h. State* xabsl::Option::initialState [private]   A pointer to the initial state. Definition at line 113 of file XabslOption.h. Referenced by create(), and execute(). ErrorHandler& xabsl::Option::errorHandler [private]   Used for error handling. Definition at line 116 of file XabslOption.h. const unsigned& xabsl::Option::time [private]   The system time in ms. Definition at line 119 of file XabslOption.h. The documentation for this class was generated from the following files: XabslOption.h XabslOption.cpp Up | Main Page | Generated at Wed Aug 19 17:32:31 2009.
