>xabsl The Extensible Agent Behavior Specification Language

XabslEngine Class Library Reference

xabsl::SynchronizedState Class Reference

#include <XabslCoopState.h>

Inheritance diagram for xabsl::SynchronizedState:

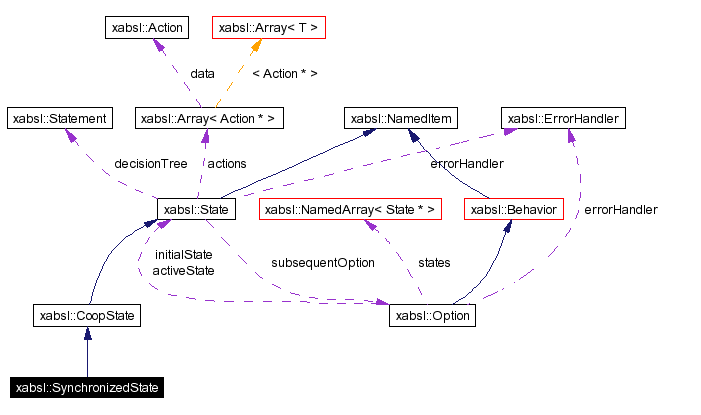

[legend]Collaboration diagram for xabsl::SynchronizedState:

Represents a state which can only be entered by all agents simultaneously.

Definition at line 99 of file XabslCoopState.h.


Public Member Functions
	SynchronizedState (const char *name, ErrorHandler &errorHandler, const unsigned &time, int optionIndex, int index, const int &agentPriority, const int &synchronizationTicks, int minAgents)
	Constructor.
virtual bool	coopCheck ()
	Check whether this state can be entered, or whether entering is blocked due to cooperating agents.
Public Attributes
int	minAgents
	Minimum number of agents that have to enter the state at once.

xabsl::SynchronizedState::SynchronizedState	(	const char *	name,
		ErrorHandler &	errorHandler,
		const unsigned &	time,
		int	optionIndex,
		int	index,
		const int &	agentPriority,
		const int &	synchronizationTicks,
		int	minAgents
	)	`[inline]`

Constructor.

Does not create the state.

Parameters:

name	The name of the state. For debugging purposes.
errorHandler	A reference to a ErrorHandler instance
time	The system time in ms.
optionIndex	Index of the corresponding option this state belongs to
index	Index of the state in array states in corresponding option
agentPriority	Priority value of the agent, used for solving conflicts in cooperative state assignment
synchronizationTicks	Number of execution cycles that is required for synchonization with other agents, i.e time from sending a message until answer is received

Definition at line 112 of file XabslCoopState.h.

virtual bool xabsl::SynchronizedState::coopCheck ( ) [inline, virtual]

Check whether this state can be entered, or whether entering is blocked due to cooperating agents.

Reimplemented from xabsl::State.

Definition at line 127 of file XabslCoopState.h.

References minAgents.

Minimum number of agents that have to enter the state at once.

Definition at line 124 of file XabslCoopState.h.

Referenced by coopCheck().

The documentation for this class was generated from the following file:
