XabslEngine Class Library Reference

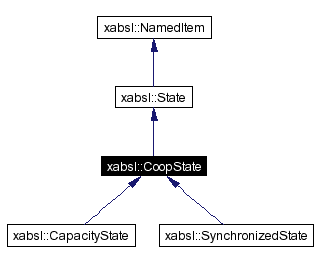

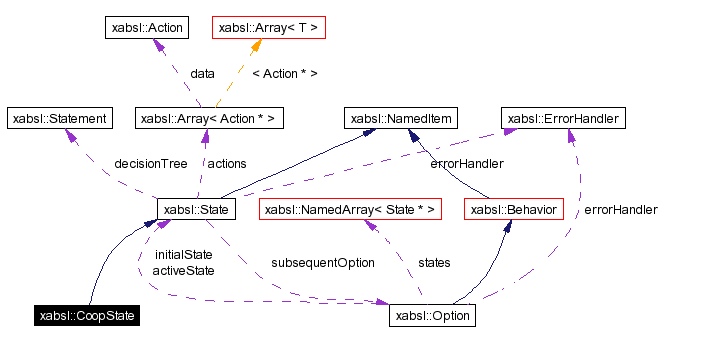

xabsl::CoopState Class Reference #include <XabslCoopState.h> Inheritance diagram for xabsl::CoopState: [legend]Collaboration diagram for xabsl::CoopState: [legend]List of all members. Detailed Description Represents a state which has features to connect to other cooperating agents. Author: Max Risler Definition at line 24 of file XabslCoopState.h. Public Member Functions   CoopState (const char *name, ErrorHandler &errorHandler, const unsigned &time, int optionIndex, int index, const int &agentPriority, const int &synchronizationTicks)   Constructor. void  prepareIncomingMessages ()   Prepare for processing incoming team messages. Public Attributes int  numberOfAgentsExecuting   Number of other agents currently executing this state, not including myself. int  numberOfAgentsEntering   Number of other agents currently trying to execute this state, but are blocked due to cooperating agents, not including myself. int  numberOfAgentsInOption   Number of other agents currently executing the option corresponding to this state, not including myself. int  highestPriorityOfAgentsEntering   Highest priority values of agents currently entering this state, not including myself. bool  entering   Flag whether the agent is currently trying to execute this state, but is blocked due to cooperating agents. int  enterCount   Counter for number of cycles that the enter flag of this state is set. const int &  agentPriority   Priority value of the agent, used for solving conflicts in cooperative state assignment. const int &  synchronizationTicks   Number of execution cycles that is required for synchonization with other agents, i.e time from sending a message until answer is received. Constructor & Destructor Documentation xabsl::CoopState::CoopState (  const char *  name, ErrorHandler &  errorHandler, const unsigned &  time, int  optionIndex, int  index, const int &  agentPriority, const int &  synchronizationTicks )  [inline]   Constructor. Does not create the state. Parameters: name  The name of the state. For debugging purposes. errorHandler  A reference to a ErrorHandler instance time  The system time in ms. optionIndex  Index of the corresponding option this state belongs to index  Index of the state in array states in corresponding option agentPriority  Priority value of the agent, used for solving conflicts in cooperative state assignment synchronizationTicks  Number of execution cycles that is required for synchonization with other agents, i.e time from sending a message until answer is received Definition at line 37 of file XabslCoopState.h. References enterCount, entering, highestPriorityOfAgentsEntering, numberOfAgentsEntering, numberOfAgentsExecuting, and numberOfAgentsInOption. Member Function Documentation void xabsl::CoopState::prepareIncomingMessages (   )  [inline]   Prepare for processing incoming team messages. This resets previously processed messages. Definition at line 80 of file XabslCoopState.h. References enterCount, entering, numberOfAgentsEntering, numberOfAgentsExecuting, and numberOfAgentsInOption. Member Data Documentation int xabsl::CoopState::numberOfAgentsExecuting   Number of other agents currently executing this state, not including myself. Definition at line 56 of file XabslCoopState.h. Referenced by CoopState(), and prepareIncomingMessages(). int xabsl::CoopState::numberOfAgentsEntering   Number of other agents currently trying to execute this state, but are blocked due to cooperating agents, not including myself. Definition at line 59 of file XabslCoopState.h. Referenced by CoopState(), and prepareIncomingMessages(). int xabsl::CoopState::numberOfAgentsInOption   Number of other agents currently executing the option corresponding to this state, not including myself. Definition at line 62 of file XabslCoopState.h. Referenced by CoopState(), and prepareIncomingMessages(). int xabsl::CoopState::highestPriorityOfAgentsEntering   Highest priority values of agents currently entering this state, not including myself. Definition at line 65 of file XabslCoopState.h. Referenced by CoopState(). bool xabsl::CoopState::entering   Flag whether the agent is currently trying to execute this state, but is blocked due to cooperating agents. Definition at line 68 of file XabslCoopState.h. Referenced by CoopState(), and prepareIncomingMessages(). int xabsl::CoopState::enterCount   Counter for number of cycles that the enter flag of this state is set. Definition at line 71 of file XabslCoopState.h. Referenced by CoopState(), and prepareIncomingMessages(). const int& xabsl::CoopState::agentPriority   Priority value of the agent, used for solving conflicts in cooperative state assignment. Definition at line 74 of file XabslCoopState.h. const int& xabsl::CoopState::synchronizationTicks   Number of execution cycles that is required for synchonization with other agents, i.e time from sending a message until answer is received. Definition at line 77 of file XabslCoopState.h. The documentation for this class was generated from the following file: XabslCoopState.h Up | Main Page | Generated at Wed Aug 19 17:32:30 2009.
