XabslEngine Class Library Reference

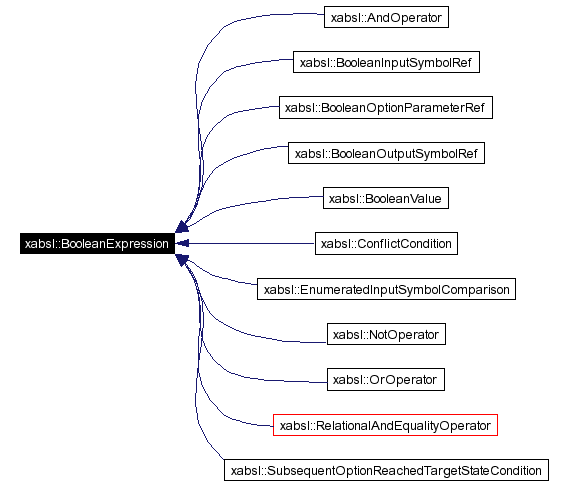

xabsl::BooleanExpression Class Reference #include <XabslBooleanExpression.h> Inheritance diagram for xabsl::BooleanExpression: [legend]List of all members. Detailed Description Base class for all boolean expressions inside an option graph. Author: Martin Loetzsch Max Risler Definition at line 26 of file XabslBooleanExpression.h. Public Member Functions virtual bool  getValue () const=0   Evaluates the boolean expression. virtual  ~BooleanExpression ()=0   Destructor. Static Public Member Functions BooleanExpression *  create (InputSource &input, ErrorHandler &errorHandler, Symbols &symbols, Option &option, State &state)   Creates a boolean expression depending on the input. bool  createOperand (BooleanExpression *&operand, InputSource &input, ErrorHandler &errorHandler, Symbols &symbols, Option &option, State &state)   Creates a boolean expression depending on the input. Constructor & Destructor Documentation xabsl::BooleanExpression::~BooleanExpression (   )  [pure virtual]   Destructor. Definition at line 16 of file XabslBooleanExpression.cpp. Member Function Documentation virtual bool xabsl::BooleanExpression::getValue (   )  const [pure virtual]   Evaluates the boolean expression. Implemented in xabsl::BooleanValue, xabsl::BooleanOptionParameterRef, xabsl::AndOperator, xabsl::OrOperator, xabsl::NotOperator, xabsl::BooleanInputSymbolRef, xabsl::BooleanOutputSymbolRef, xabsl::SubsequentOptionReachedTargetStateCondition, xabsl::ConflictCondition, xabsl::EnumeratedInputSymbolComparison, xabsl::RelationalAndEqualityOperator, xabsl::EqualToOperator, xabsl::NotEqualToOperator, xabsl::LessThanOperator, xabsl::LessThanOrEqualToOperator, xabsl::GreaterThanOperator, and xabsl::GreaterThanOrEqualToOperator. Referenced by xabsl::ActionBooleanOutputSymbol::execute(), xabsl::IfElseBlock::getNextState(), xabsl::ConditionalEnumeratedExpression::getValue(), xabsl::ConditionalDecimalExpression::getValue(), and xabsl::NotOperator::getValue(). BooleanExpression * xabsl::BooleanExpression::create (  InputSource &  input, ErrorHandler &  errorHandler, Symbols &  symbols, Option &  option, State &  state )  [static]   Creates a boolean expression depending on the input. Parameters: input  An input source for the intermediate code. It must be opened and read until A position where a boolean expression starts. errorHandler  A reference to a ErrorHandler instance symbols  All available symbols option  The current option state  The current state Definition at line 20 of file XabslBooleanExpression.cpp. References xabsl::OrOperator::addOperand(), xabsl::AndOperator::addOperand(), xabsl::RelationalAndEqualityOperator::create(), xabsl::ErrorHandler::error(), xabsl::ErrorHandler::message(), xabsl::InputSource::readString(), xabsl::InputSource::readValue(), and XABSL_DEBUG_INIT. Here is the call graph for this function: bool xabsl::BooleanExpression::createOperand (  BooleanExpression *&  operand, InputSource &  input, ErrorHandler &  errorHandler, Symbols &  symbols, Option &  option, State &  state )  [static]   Creates a boolean expression depending on the input. Uses the create() function to create boolean operands. Parameters: operand  The expression to be created input  An input source for the intermediate code. It must be opened and read until A position where a boolean operand starts. errorHandler  A reference to a ErrorHandler instance symbols  All available symbols option  The current option state  The current state Returns: If the creation was successful Definition at line 175 of file XabslBooleanExpression.cpp. References xabsl::ErrorHandler::error(), and xabsl::ErrorHandler::errorsOccurred. Here is the call graph for this function: The documentation for this class was generated from the following files: XabslBooleanExpression.h XabslBooleanExpression.cpp Up | Main Page | Generated at Wed Aug 19 17:32:30 2009.
