xabsl::RelationalAndEqualityOperator Class Reference

#include <XabslBooleanExpression.h>

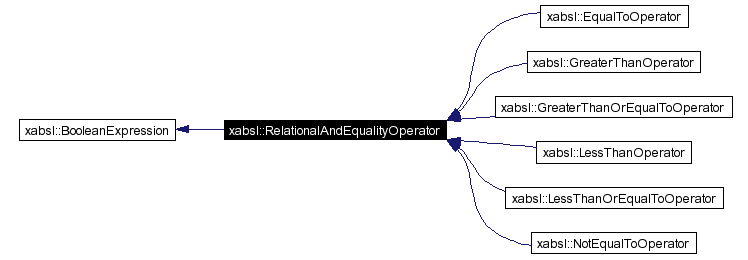

Inheritance diagram for xabsl::RelationalAndEqualityOperator:

Inheritance graph

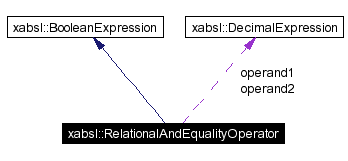

[legend]Collaboration diagram for xabsl::RelationalAndEqualityOperator:

Collaboration graph

[legend]List of all members.

Detailed Description

Base class for the operators <, <=, >, >=, == and !=.

Author:: Martin Loetzsch

Definition at line 383 of file XabslBooleanExpression.h.


Public Member Functions
void	create (DecimalExpression operand1, DecimalExpression operand2)
	Creates the element.
	~RelationalAndEqualityOperator ()
	Destructor.
virtual bool	getValue () const=0
	Evaluates the boolean expression.
Protected Attributes
DecimalExpression *	operand1
	operand 1
DecimalExpression *	operand2
	operand 2

Constructor & Destructor Documentation

xabsl::RelationalAndEqualityOperator::~RelationalAndEqualityOperator

(

)

Destructor.

Deletes the two operands

Definition at line 440 of file XabslBooleanExpression.cpp.

Member Function Documentation

void xabsl::RelationalAndEqualityOperator::create	(	DecimalExpression *	operand1,
		DecimalExpression *	operand2
	)

Creates the element.

Parameters:

operand1	A decimal expression
operand2	A decimal expression

Definition at line 433 of file XabslBooleanExpression.cpp.

Referenced by xabsl::BooleanExpression::create().

virtual bool xabsl::RelationalAndEqualityOperator::getValue ( ) const [pure virtual]

Evaluates the boolean expression.

Implements xabsl::BooleanExpression.

Implemented in xabsl::EqualToOperator, xabsl::NotEqualToOperator, xabsl::LessThanOperator, xabsl::LessThanOrEqualToOperator, xabsl::GreaterThanOperator, and xabsl::GreaterThanOrEqualToOperator.

Member Data Documentation

DecimalExpression* xabsl::RelationalAndEqualityOperator::operand1 [protected]

operand 1

Definition at line 402 of file XabslBooleanExpression.h.

DecimalExpression* xabsl::RelationalAndEqualityOperator::operand2 [protected]

operand 2

Definition at line 405 of file XabslBooleanExpression.h.

The documentation for this class was generated from the following files:
