XabslEngine Class Library Reference

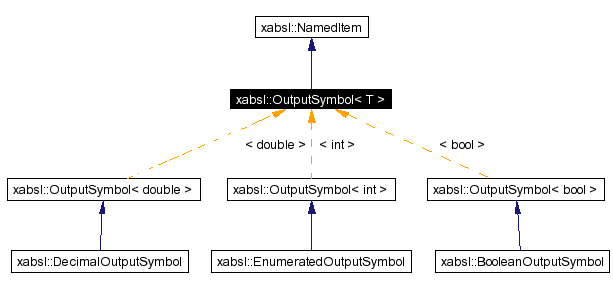

xabsl::OutputSymbol< T > Class Template Reference #include <XabslSymbols.h> Inheritance diagram for xabsl::OutputSymbol< T >: [legend]Collaboration diagram for xabsl::OutputSymbol< T >: [legend]List of all members. Detailed Description template<class T> class xabsl::OutputSymbol< T > A Template for the output symbol classes. Author: Max Risler Definition at line 227 of file XabslSymbols.h. Public Member Functions   OutputSymbol (const char *name, T *pVariable, int index)   Constructor.   OutputSymbol (const char *name, void(*pSetFunction)(T), T(*pGetFunction)(), int index)   Constructor. void  setValue (T value)   Set the value of the symbol. T  getValue () const   Returns the current value of the symbol. Public Attributes bool  activeValueWasSet   If true, the value was set during the last execution of the option graph. int  index   Index of the symbol in array in corresponding engine. T  lastValue   Last set value of the output symbol. Private Attributes T *  pV   A pointer to a variable in the software environment. void(*  pSetF )(T)   A pointer to a function that sets the value of the symbol in the software environment. T(*  pGetF )()   A pointer to a function that gets the value of the symbol from the software environment. Constructor & Destructor Documentation template<class T> xabsl::OutputSymbol< T >::OutputSymbol (  const char *  name, T *  pVariable, int  index )  [inline]   Constructor. Parameters: name  The name of the symbol, for debugging purposes pVariable  A pointer to the variable that the symbol stands for index  Index of the symbol in array in corresponding engine Definition at line 236 of file XabslSymbols.h. template<class T> xabsl::OutputSymbol< T >::OutputSymbol (  const char *  name, void(*  pSetFunction)(T), T(*  pGetFunction)(), int  index )  [inline]   Constructor. Parameters: name  The name of the symbol, for debugging purposes pSetFunction  A pointer to a boolean accepting function in the software environment pGetFunction  A pointer to a boolean returning function in the software environment index  Index of the symbol in array in corresponding engine Definition at line 247 of file XabslSymbols.h. Member Function Documentation template<class T> void xabsl::OutputSymbol< T >::setValue (  T  value  )  [inline]   Set the value of the symbol. Definition at line 255 of file XabslSymbols.h. template<class T> T xabsl::OutputSymbol< T >::getValue (   )  const [inline]   Returns the current value of the symbol. Definition at line 270 of file XabslSymbols.h. Member Data Documentation template<class T> bool xabsl::OutputSymbol< T >::activeValueWasSet   If true, the value was set during the last execution of the option graph. Definition at line 283 of file XabslSymbols.h. template<class T> int xabsl::OutputSymbol< T >::index   Index of the symbol in array in corresponding engine. Definition at line 286 of file XabslSymbols.h. template<class T> T xabsl::OutputSymbol< T >::lastValue   Last set value of the output symbol. Definition at line 289 of file XabslSymbols.h. template<class T> T* xabsl::OutputSymbol< T >::pV [private]   A pointer to a variable in the software environment. Definition at line 293 of file XabslSymbols.h. template<class T> void(* xabsl::OutputSymbol< T >::pSetF)(T) [private]   A pointer to a function that sets the value of the symbol in the software environment. template<class T> T(* xabsl::OutputSymbol< T >::pGetF)() [private]   A pointer to a function that gets the value of the symbol from the software environment. The documentation for this class was generated from the following file: XabslSymbols.h Up | Main Page | Generated at Wed Aug 19 17:32:31 2009.
