XabslEngine Class Library Reference

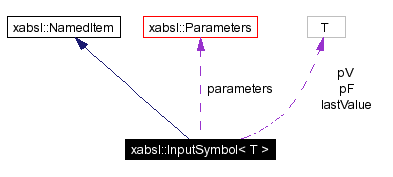

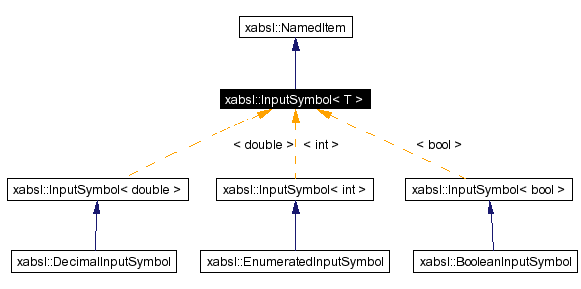

xabsl::InputSymbol< T > Class Template Reference #include <XabslSymbols.h> Inheritance diagram for xabsl::InputSymbol< T >: [legend]Collaboration diagram for xabsl::InputSymbol< T >: [legend]List of all members. Detailed Description template<class T> class xabsl::InputSymbol< T > A Template for the input symbol classes. Author: Martin Loetzsch Definition at line 70 of file XabslSymbols.h. Public Member Functions   InputSymbol (const char *name, const T *pVariable, ErrorHandler &errorHandler, int index)   Constructor.   InputSymbol (const char *name, T(*pFunction)(), ErrorHandler &errorHandler, int index)   Constructor. T  getValue ()   returns the value of the symbol void  parametersChanged () const   Notify the software environment about a parameter change. Public Attributes Parameters  parameters   The parameters of the input symbol. void(*  pParametersChanged )()   A Pointer to a parameter change notification function in the software environment. int  index   Index of the symbol in array in corresponding engine. T  lastValue   Last queried value of the input symbol. Private Attributes const T *  pV   A pointer to a variable in the software environment. T(*  pF )()   A pointer to a T returning function in the software environment. Constructor & Destructor Documentation template<class T> xabsl::InputSymbol< T >::InputSymbol (  const char *  name, const T *  pVariable, ErrorHandler &  errorHandler, int  index )  [inline]   Constructor. Parameters: name  The name of the symbol, for debugging purposes pVariable  A pointer to the variable that the symbol stands for index  Index of the symbol in array in corresponding engine Definition at line 79 of file XabslSymbols.h. template<class T> xabsl::InputSymbol< T >::InputSymbol (  const char *  name, T(*  pFunction)(), ErrorHandler &  errorHandler, int  index )  [inline]   Constructor. Parameters: name  The name of the symbol, for debugging purposes pFunction  A pointer to a boolean returning function in the software environment index  Index of the symbol in array in corresponding engine Definition at line 89 of file XabslSymbols.h. Member Function Documentation template<class T> T xabsl::InputSymbol< T >::getValue (   )  [inline]   returns the value of the symbol Definition at line 95 of file XabslSymbols.h. template<class T> void xabsl::InputSymbol< T >::parametersChanged (   )  const [inline]   Notify the software environment about a parameter change. Definition at line 99 of file XabslSymbols.h. Member Data Documentation template<class T> Parameters xabsl::InputSymbol< T >::parameters   The parameters of the input symbol. Definition at line 103 of file XabslSymbols.h. template<class T> void(* xabsl::InputSymbol< T >::pParametersChanged)()   A Pointer to a parameter change notification function in the software environment. template<class T> int xabsl::InputSymbol< T >::index   Index of the symbol in array in corresponding engine. Definition at line 109 of file XabslSymbols.h. template<class T> T xabsl::InputSymbol< T >::lastValue   Last queried value of the input symbol. Definition at line 112 of file XabslSymbols.h. template<class T> const T* xabsl::InputSymbol< T >::pV [private]   A pointer to a variable in the software environment. Definition at line 116 of file XabslSymbols.h. template<class T> T(* xabsl::InputSymbol< T >::pF)() [private]   A pointer to a T returning function in the software environment. The documentation for this class was generated from the following file: XabslSymbols.h Up | Main Page | Generated at Wed Aug 19 17:32:31 2009.
