xabsl::EnumeratedValue Class Reference

#include <XabslEnumeratedExpression.h>

Inheritance diagram for xabsl::EnumeratedValue:

Inheritance graph

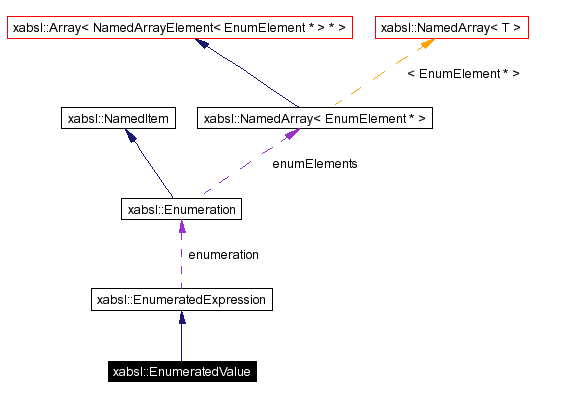

[legend]Collaboration diagram for xabsl::EnumeratedValue:

Collaboration graph

[legend]List of all members.

Detailed Description

Represents a enumerated value.

Author:: Max Risler

Definition at line 83 of file XabslEnumeratedExpression.h.


Public Member Functions
	EnumeratedValue (const Enumeration *enumeration, InputSource &input, ErrorHandler &errorHandler)
	Constructor.
	EnumeratedValue (const Enumeration *enumeration, int value)
	Constructor.
virtual int	getValue () const
	Calculates the value of the decimal expression.
Private Attributes
int	value
	The value.

Constructor & Destructor Documentation

xabsl::EnumeratedValue::EnumeratedValue	(	const Enumeration *	enumeration,
		InputSource &	input,
		ErrorHandler &	errorHandler
	)

Constructor.

Creates the value

Parameters:

enumeration	A reference to the enumeration which is the domain of this expression
input	An input source for the intermediate code. It must be opened and read until A position where a value starts.
errorHandler	A reference to a ErrorHandler instance

Definition at line 73 of file XabslEnumeratedExpression.cpp.

References xabsl::Enumeration::enumElements, xabsl::ErrorHandler::error(), xabsl::NamedArray< EnumElement * >::exists(), xabsl::NamedItem::n, and xabsl::InputSource::readString().

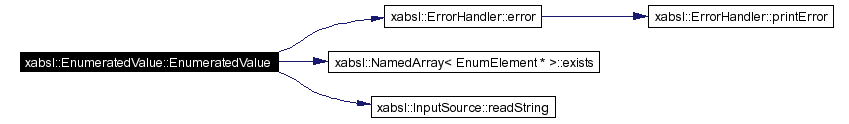

Here is the call graph for this function:

xabsl::EnumeratedValue::EnumeratedValue	(	const Enumeration *	enumeration,
		int	value
	)	`[inline]`

Constructor.

Creates an expression for a fixed enumerated value

Parameters:

value

The enumerated value

Definition at line 101 of file XabslEnumeratedExpression.h.

Member Function Documentation

int xabsl::EnumeratedValue::getValue ( ) const [virtual]

Calculates the value of the decimal expression.

Implements xabsl::EnumeratedExpression.

Definition at line 96 of file XabslEnumeratedExpression.cpp.

Member Data Documentation

int xabsl::EnumeratedValue::value [private]

The value.

Definition at line 112 of file XabslEnumeratedExpression.h.

The documentation for this class was generated from the following files:
