XabslEngine Class Library Reference

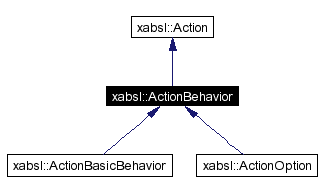

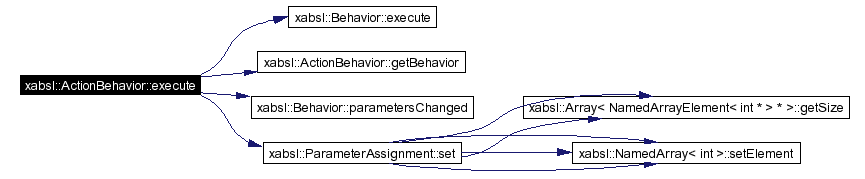

xabsl::ActionBehavior Class Reference #include <XabslAction.h> Inheritance diagram for xabsl::ActionBehavior: [legend]Collaboration diagram for xabsl::ActionBehavior: [legend]List of all members. Detailed Description Represents an action execution. This is either a subsequent option or basic behavior to be executed. Author: Max Risler Definition at line 130 of file XabslAction.h. Public Member Functions   ActionBehavior (const unsigned &time)   Constructor.   ~ActionBehavior ()   Destructor. virtual const Behavior *  getBehavior () const=0   The option or basic behavior that is executed. virtual Behavior *  getBehavior ()=0   Returns a pointer to the option or basic behavior to be executed, or 0 if an output symbol is set. virtual void  execute ()   Execute the behavior. Public Attributes ParameterAssignment *  parameters   Parameters of the option or basic behavior that is executed. Constructor & Destructor Documentation xabsl::ActionBehavior::ActionBehavior (  const unsigned &  time  )  [inline]   Constructor. Parameters: time  The system time in ms. Definition at line 137 of file XabslAction.h. References parameters. xabsl::ActionBehavior::~ActionBehavior (   )    Destructor. Definition at line 163 of file XabslAction.cpp. References parameters. Member Function Documentation virtual const Behavior* xabsl::ActionBehavior::getBehavior (   )  const [pure virtual]   The option or basic behavior that is executed. Reimplemented from xabsl::Action. Implemented in xabsl::ActionBasicBehavior, and xabsl::ActionOption. Referenced by xabsl::Engine::checkForLoops(), execute(), and xabsl::Action::getBehavior(). virtual Behavior* xabsl::ActionBehavior::getBehavior (   )  [pure virtual]   Returns a pointer to the option or basic behavior to be executed, or 0 if an output symbol is set. Reimplemented from xabsl::Action. Implemented in xabsl::ActionBasicBehavior, and xabsl::ActionOption. void xabsl::ActionBehavior::execute (   )  [virtual]   Execute the behavior. Implements xabsl::Action. Definition at line 187 of file XabslAction.cpp. References xabsl::Behavior::execute(), getBehavior(), xabsl::Behavior::isActive, parameters, xabsl::Behavior::parametersChanged(), xabsl::ParameterAssignment::set(), xabsl::Behavior::timeOfExecution, xabsl::Behavior::timeWhenActivated, and xabsl::Behavior::wasActive. Here is the call graph for this function: Member Data Documentation ParameterAssignment* xabsl::ActionBehavior::parameters   Parameters of the option or basic behavior that is executed. Definition at line 148 of file XabslAction.h. Referenced by ActionBehavior(), xabsl::Action::create(), execute(), xabsl::Action::getParameters(), and ~ActionBehavior(). The documentation for this class was generated from the following files: XabslAction.h XabslAction.cpp Up | Main Page | Generated at Wed Aug 19 17:32:29 2009.
